Oracle Server Architecture

• many users concurrently accessing a single database

• the high performance required by concurrent multi-user, multi-application database systems

Memory Structures and Processes

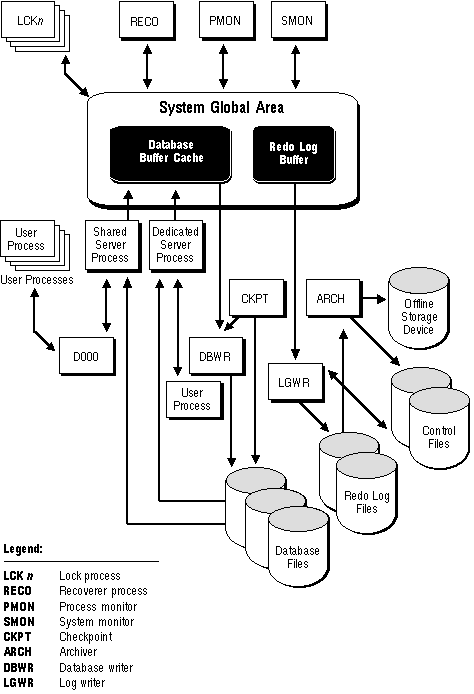

Figure 1 - 4 shows a typical variation of the Oracle Server memory and process structures.

Figure 1 - 4. Memory Structures and Processes of Oracle

Memory Structures

System Global Area (SGA)

Oracle allocates the system global area when an instance starts and deallocates it when the instance shuts down. Each instance has its own system global area.

Users currently connected to an Oracle Server share the data in the system global area. For optimal performance, the entire system global area should be as large as possible (while still fitting in real memory) to store as much data in memory as possible and minimize disk I/O. The information stored within the system global area is divided into several types of memory structures, including the database buffers, redo log buffer, and the shared pool. These areas have fixed sizes and are created during instance startup.

Database Buffer Cache Database buffers of the system global area store the most recently used blocks of database data; the set of database buffers in an instance is the database buffer cache. These buffers can contain modified data that has not yet been permanently written to disk. Because the most recently (and often the most frequently) used data is kept in memory, less disk I/O is necessary and performance is increased.

Redo Log Buffer The redo log buffer of the system global area stores redo entries -- a log of changes made to the database. The redo entries stored in the redo log buffers are written to an online redo log file, which is used if database recovery is necessary. Its size is static.

Shared Pool The shared pool is a portion of the system global area that contains shared memory constructs such as shared SQL areas. A shared SQL area is required to process every unique SQL statement submitted to a database (see "SQL Statements" 1-24). A shared SQL area contains information such as the parse tree and execution plan for the corresponding statement. A single shared SQL area is used by multiple applications that issue the same statement, leaving more shared memory for other uses.

Cursors A cursor is a handle (a name or pointer) for the memory associated with a specific statement. Although most Oracle users rely on the automatic cursor handling of the Oracle utilities, the programmatic interfaces offer application designers more control over cursors. For example, in precompiler application development, a cursor is a named resource available to a program and can be specifically used for the parsing of SQL statements embedded within the application. The application developer can code an application so that it controls the phases of SQL statement execution and thus improve application performance.

Program Global Area (PGA)

Processes

An Oracle Server has two general types of processes: user processes and Oracle processes.

User (Client) Processes

Oracle Processes

Server Processes Oracle creates server processes to handle requests from connected user processes. A server process is in charge of communicating with the user process and interacting with Oracle to carry out requests of the associated user process. For example, if a user queries some data that is not already in the database buffers of the system global area, the associated server process reads the proper data blocks from the datafiles into the system global area.

Oracle can be configured to vary the number of user processes per server process. In a dedicated server configuration, a server process handles requests for a single user process. A multi-threaded server configuration allows many user processes to share a small number of server processes, minimizing the number of server processes and maximizing the utilization of available system resources.

On some systems, the user and server processes are separate, while on others they are combined into a single process. If a system uses the multi-threaded server or if the user and server processes run on different machines, the user and server processes must be separate. Client/server systems separate the user and server processes and execute them on different machines.

Background Processes Oracle creates a set of background processes for each instance. They consolidate functions that would otherwise be handled by multiple Oracle programs running for each user process. The background processes asynchronously perform I/O and monitor other Oracle processes to provide increased parallelism for better performance and reliability.

An SGA and the Oracle background processes constitute an Oracle instance. (See "System Global Area (SGA)" for information about the system global area and "An Oracle Instance" for information about Oracle instances.)

Each Oracle instance may use several background processes. The names of these processes are DBWR, LGWR, CKPT, SMON, PMON, ARCH, RECO, Dnnn and LCKn. Each background process is described in the following sections.

Database Writer (DBWR) The Database Writer writes modified blocks from the database buffer cache to the datafiles. Because of the way Oracle performs logging, DBWR does not need to write blocks when a transaction commits (see "Transactions" ). Instead, DBWR is optimized to minimize disk writes. In general, DBWR writes only when more data needs to be read into the system global area and too few database buffers are free. The least recently used data is written to the datafiles first.

Log Writer (LGWR) The Log Writer writes redo log entries to disk. Redo log data is generated in the redo log buffer of the system global area. As transactions commit and the log buffer fills, LGWR writes redo log entries into an online redo log file.

Checkpoint (CKPT) At specific times, all modified database buffers in the system global area are written to the datafiles by DBWR; this event is called a checkpoint. The Checkpoint process is responsible for signalling DBWR at checkpoints and updating all the datafiles and control files of the database to indicate the most recent checkpoint. CKPT is optional; if CKPT is not present, LGWR assumes the responsibilities of CKPT.

System Monitor (SMON) The system monitor performs instance recovery at instance startup. In a multiple instance system (one that uses the Parallel Server), SMON of one instance can also perform instance recovery for other instances that have failed. SMON also cleans up temporary segments that are no longer in use and recovers dead transactions skipped during crash and instance recovery because of file-read or offline errors. These transactions are eventually recovered by SMON when the tablespace or file is brought back online. SMON also coalesces free extents within the database to make free space contiguous and easier to allocate.

Process Monitor (PMON) The process monitor performs process recovery when a user process fails. PMON is responsible for cleaning up the cache and freeing resources that the process was using. PMON also checks on dispatcher (see below) and server processes and restarts them if they have failed.

Archiver (ARCH) The archiver copies the online redo log files to archival storage when they are full. ARCH is active only when a database's redo log is used in ARCHIVELOG mode. (See "The Redo Log" ).

Recoverer (RECO) The recoverer is used to resolve distributed transactions that are pending due to a network or system failure in a distributed database. At timed intervals, the local RECO attempts to connect to remote databases and automatically complete the commit or rollback of the local portion of any pending distributed transactions.

Dispatcher (Dnnn) Dispatchers are optional background processes, present only when a multi-threaded server configuration is used. At least one dispatcher process is created for every communication protocol in use (D000, . . ., Dnnn). Each dispatcher process is responsible for routing requests from connected user processes to available shared server processes and returning the responses back to the appropriate user processes.

Lock (LCKn) Up to ten lock processes (LCK0, . . ., LCK9) are used for inter-instance locking when the Oracle Parallel Server is used; see "The Oracle Parallel Server: Multiple Instance Systems" for more information about this configuration.

The Program Interface

• act as a communications mechanism, by formatting data requests, passing data, and trapping and returning errors

• perform conversions and translations of data, particularly between different types of computers or to external user program datatypes

An Example of How Oracle Works

1. An instance is currently running on the computer that is executing Oracle (often called the host or database server).

2. A computer used to run an application (a local machine or client workstation) runs the application in a user process. The client application attempts to establish a connection to the server using the proper SQL*Net driver.

3. The server is running the proper SQL*Net driver. The server detects the connection request from the application and creates a (dedicated) server process on behalf of the user process.

4. The user executes a SQL statement and commits the transaction. For example, the user changes a name in a row of a table.

5. The server process receives the statement and checks the shared pool for any shared SQL area that contains an identical SQL statement. If a shared SQL area is found, the server process checks the user's access privileges to the requested data and the previously existing shared SQL area is used to process the statement; if not, a new shared SQL area is allocated for the statement so that it can be parsed and processed.

6. The server process retrieves any necessary data values from the actual datafile (table) or those stored in the system global area.

7. The server process modifies data in the system global area. The DBWR process writes modified blocks permanently to disk when doing so is efficient. Because the transaction committed, the LGWR process immediately records the transaction in the online redo log file.

8. If the transaction is successful, the server process sends a message across the network to the application. If it is not successful, an appropriate error message is transmitted.

9. Throughout this entire procedure, the other background processes run, watching for conditions that require intervention. In addition, the database server manages other users' transactions and prevents contention between transactions that request the same data.
